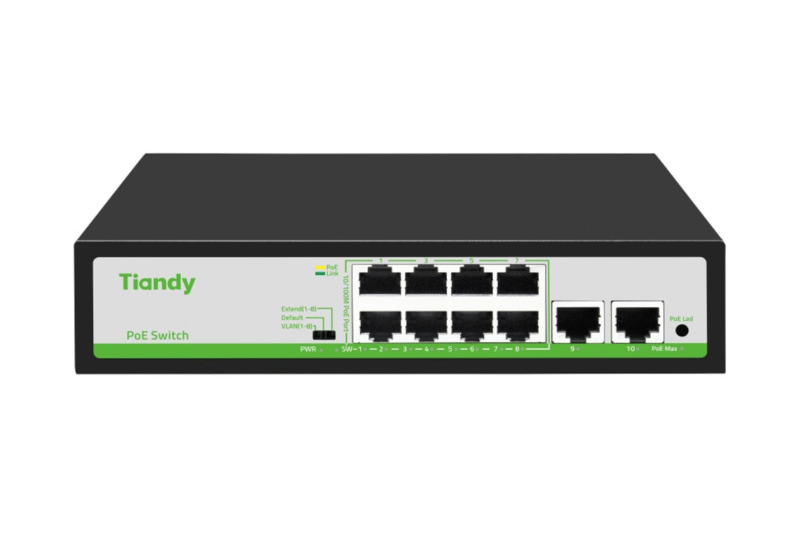

Tiandy TC-P3S010 Spec:F/0820/AT/90

PoE switch

KEY FEATURE

8*10/100Mbps PoE Ports + 2*10/100Mbps RJ45 Uplink Ports
Comply with IEEE 802.3、IEEE 802.3u、IEEE802.3x standard
Ethernet port supports 10/100Mbps adaptive
Support POE Priority (QOS):1>2>3>4>5>6>7>8(The port in front has higher priority)
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard Support Port Auto-flip (Auto MDI/MDIX)
Adopting store-and-forward switching mechanism
All ports support wire-speed switching
Zero configuration feature, automatically supplied to adaptive equipment.
Panel indicator monitoring status and help failure analysis
With three gears and one key intelligent dip switch, support VLAN, Default, Extend three modes
Surge Protection: General 4KV (level C): ESD 8KV air, 6KV contact (level C)

Categories: Supporting Products, Switch Brand: Tiandy

Additional information

Distributor	Distributed By PT Sentra Mitra Teknologi
Ethernet	810/100Mbps PoE Ports ,210/100Mbps RJ45 Uplink Ports
Bandwidth	2Gbps
Throughput	1.488Mpps
Transfer Mode	Store and forward
Industrial Standart	EMS: EN61000-4-2 (ESD)、 EN61000-4-5 (Surge)
Working Temperature	-10~50°C
Optical	N/A
VLAN	and can only communicate with the Uplink port (9、10). The port AI mode (PoE Watchdog) is turned on., Support, VLAN: (Port Isolation Mode). In this mode, the PoE ports (1-8) of the switch cannot communicate with each other
