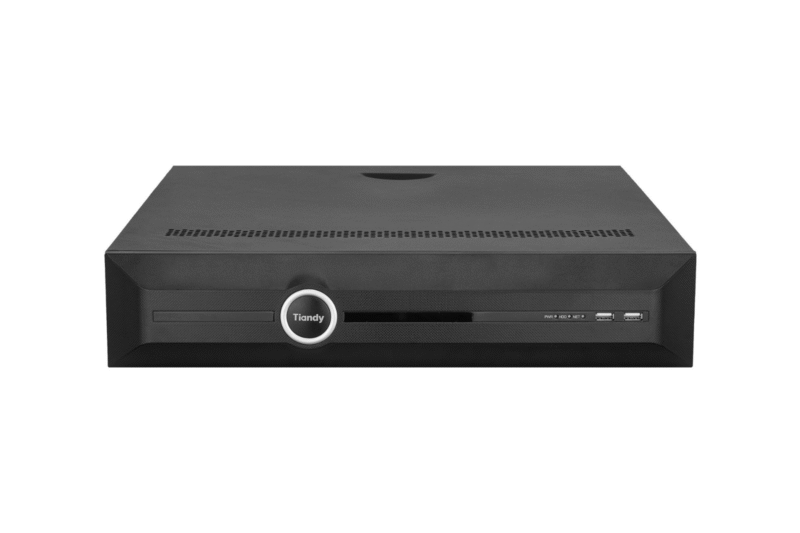

TC-R3880 Spec:I/B/N/V4.0

H.265 4HDD 40ch NVR

KEY FEATURE

HD Input
• S+265/H.265/S+264/H.264 video formats
• Connectable to the third-party network cameras
• Support live view, storage, and playback of the connected camera at up to 16MP resolution
HD Output
• HDMI and VGA independent outputs
• HDMI Video output at up to 4K resolution
HD Storage
• 8 SATA interface, up to 18TB for 1 HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 2×RJ45 self-adaptive 10/100/1000 Mbps network interface
Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Support cloud upgrade

Additional information

Distributor	Distributed By PT Sentra Mitra Teknologi
Channel Input	80 Channel
Incoming Bandwidth	640Mbps
Outgoing Bandwidth	320Mbps
Resolution Input	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Multi-screen Display	1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80
Third-party Camera Access	ONVIF;RTSP
Audio Input	1-ch,3.5mm
Audio Output	1-ch,3.5mm;BNC
Video Compression	S+265;H.265;S+264;H.264
System Compability	ONVIF(profile T/S/G);CGI;SDK
Hardisk Input	8 SATA
POE Interface	N/A
AI by Camera	Link To Tracking;Fireworks detection;Environmental temperature measurement;Face Detection;Human body temperature measurement;Advanced Intelligence, Signal Loss Detection;Plate License Recognition;On Duty Detection;Crowd Detection; Parking guard;Safety Helmet Detection;Electric vehicle testing;People Counting, Tripwire;Double Tripwire;Perimeter;Object Abandon;Object Missing;Loiter;Running; Parking;Heatmap;Lens Dignose;Scene Switch Dignose;Signal Abnormal Detection
VCA Search	Heatmap;Early-warning search;Behavior Search;Plate license search;Search safety helmet;Thermographic retrieval;Duty search;Electric vehicle retrieval;Facial search
