TC-R324160 Spec: E/B/R/N/V4.0

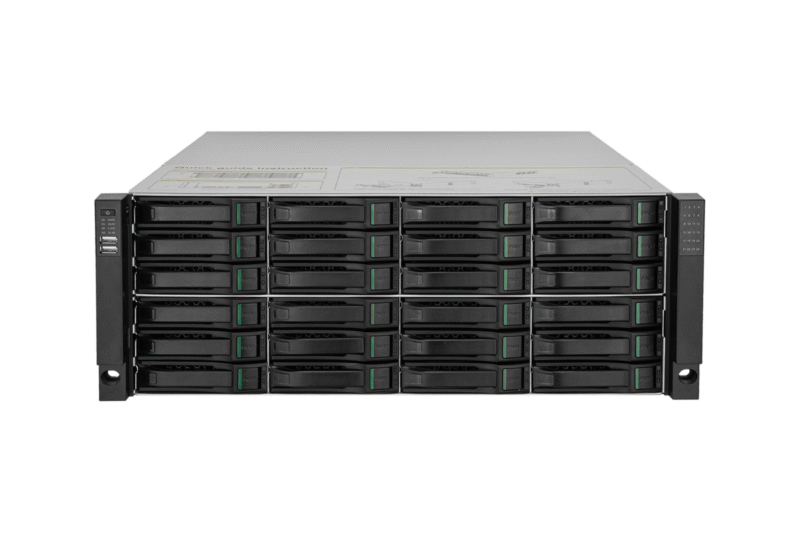

H.265 24HDD 160ch Redundant power supply NVR

KEY FEATURE

HD Input
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Support live view, storage, and playback of the connected camera at up to 12MP resolution
HD Output
• HDMI and VGA independent outputs
• HDMI Video output at up to 4K resolution
HD Storage
•24 SATA interface, up to 10TB for 1 HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
• 4×RJ45 self-adaptive 10/100/1000 Mbps network interface
Stability assurance
• Hot swap HDD
• Redundant power
Various Applications
• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
• VCA detection alarm is supported
• Web6 supports plug-in free browsing and can preview
videos on all browsers
• Support cloud upgrade

Additional information

Distributor	Distributed By PT Sentra Mitra Teknologi
Channel Input	80 Channel
Incoming Bandwidth	640Mbps
Outgoing Bandwidth	400Mbps
Resolution Input	12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Multi-screen Display	1/2/3/4/5/6/7/8/9/10/12/13/16/20A/20B/25/32/36/40/64/80
Third-party Camera Access	ONVIF;RTSP
Audio Input	1-ch,3.5mm
Audio Output	1-ch,3.5mm;BNC
Video Compression	S+265/H.265/H.264
System Compability	ONVIF (PROFILE S/T/G), SDK, P2P
Hardisk Input	24 SATA
POE Interface	N/A
AI by Camera	N/A
VCA Search	N/A
